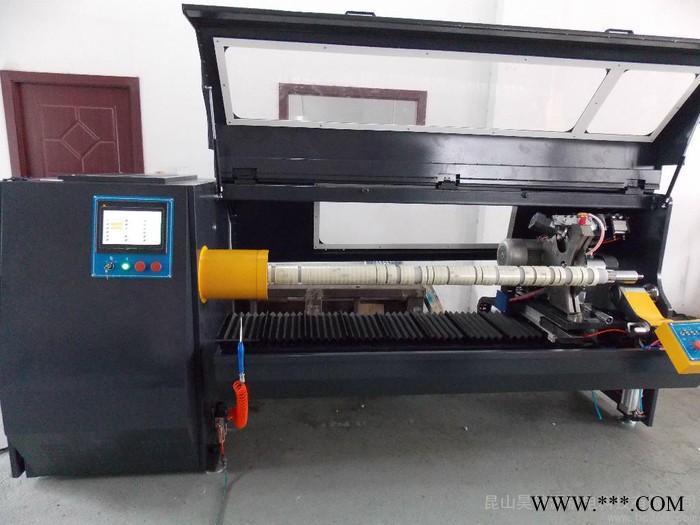

供應昊錦源HJY-QJ03分切機

用途 Application

各種膠帶材料之切卷

如：雙面膠帶.電工膠帶.美紋膠帶.建筑膠帶及各種特殊膠帶等切卷

Suitable for cutting tape

For example: double side tape, cloth tape, masking tape and other special tapes


特點 Features

※主機傳動部分：采用AC馬達搭配變頻器做為切卷材料傳動，加減速穩定快速。

※Main Motor: Cutting shaft and circular blade are driven by A.C motor with inverter control, which able to set RPM and running direction obverse/reserve on different requests.

※中央控制單元：使用可程式中央控制，同軸中可設定多種尺寸自動轉換切割。

※Central Control: Central control system is CPU, which can cut various sizes on one log roll by changing modes automatically.

※操作面板部分：操作介面采用LCD觸控屏，可直接在屏幕上設定各種切卷條件及運轉狀況。

※Display Mode: All functions are operated under LCD touch panel control, which is operator friendly and easy for data setting.

※切卷定位系統：使用伺服馬達控制高精度滾珠螺桿進行尺寸定位及使用線性滑軌承載刀座。定位動作**平順。

※Width Setting: Width setting is controlled by servomotor with ball screw and guide rails to make accuracy movement.

※進刀定位系統：使用伺服馬達控制進刀方式，可擬人化做三段式速度進刀切提高效率并得到**好品質。

※Cutting System: Knife feeding is controlled by servomotor, which can do three-speed cutting.

※圓刀角度調整：使用伺服馬達計算圓刀角度轉向，因應不同材料做不同角度變化。可減少換刀次數，提高生產效率。

※Knife Angle Adjustment: Cutting angle can be changed automatically for making roll surface smoothly.

※快速換軸裝置：本機器有三種切割軸可共選用，采用快速換軸方式，因應不同材料需求。

※Shaft Change: Three kinds of cutting shafts for optional using on this machine, which use quick changing shaft according to different material.

選購配件 Optional Parts

※安全護罩Safety Cover

※角度調整Angle Adjustment

※前后擋板Cutter Guard

※三段進刀Three Speed Cutting

※觸控顯示Touch Screen

※自動注油Automatic Fill Oil

※自動噴水Automatic Water

※圓刀驅動Blade Driving

機械規格 Specification

機械制造寬度:1M-1.6M    Machine Width: 1M-1.6M

**大切卷直徑:350mm      Max. Cutting O.D: 350mm

切割管心外經:1'-3'        Cutting Core I.D: 1'-3'

**小切卷寬度:2mm        Min. Cutting Width: 2mm
