| 品牌 | 毅美 |
|---|---|
| 加工定制 | 是 |
| 用途 | 切紙機 |
| 包裝類型 | 箱 |
| 適用對象 | 熱敏紙、收銀紙、傳真紙 |
| 適用行業 | 印刷、印后設備 |
| 型號 | XFQ-900 |
| 外形尺寸 | 1900*1800*1600 |
| 產品別名 | 分切機 |
| 成品尺寸 | ￠1000 |
| 規格 | 1600mm*1900mm*1400mm |
| 加工定制 | 是 | 最大原料寬度 | 900（mm） | 最大原料直徑 | ￠1000mm（mm） |
| 最大收卷直徑 | ￠150mm（mm） | 分切速度 | 150m/min（m/min） | 收卷軸 | 可定制 |
| 總功率 | 約2.9kw（Kw） | 外形尺寸 | 1900*1800*1600（mm） | 重量 | 1100（kg） |
| 品牌 | 毅美 |
產品概況： |

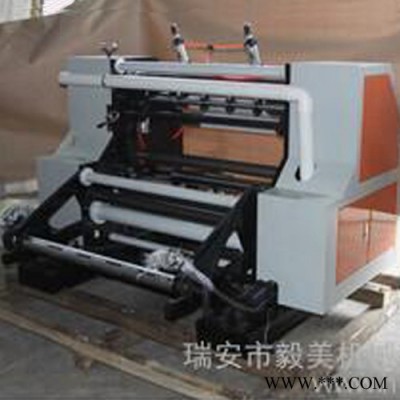

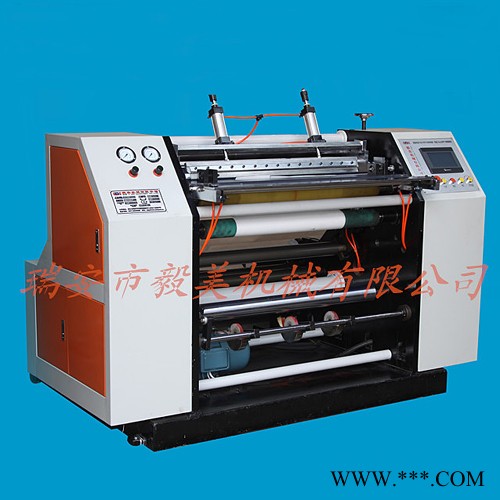

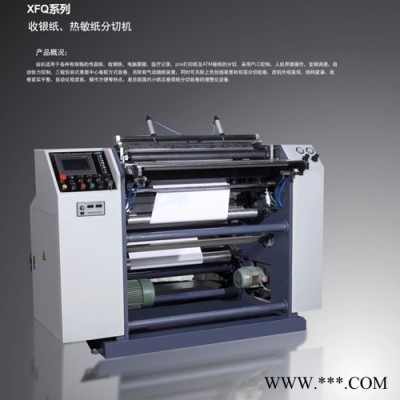

FQ系列傳真紙、收銀紙分切機 |
產品參數： |
分切材料 40~100g/㎡ 熱敏紙 設備幅寬 900mm、1100mm 放卷最大直徑 ￠1000mm 收卷最大直徑 ￠150mm 放卷軸規格 ￠76mm 氣漲軸 收卷軸規格 半寸、一寸鋼軸 (可定制） 最高分切速度 150m/min 最小分切寬度 28mm 收卷端面平整度 ≤±0.2mm 裝機總功率 約2.9kw 電源 三相 380v,50Hz 外型尺寸（長×寬×高） 1900mm×1800mm×1600mm |
FQ Faxing Paper and Receipt Paper Slitter
The company is dedicated to manufacturing facsimile paper slitters, heat-sensitive paper
(carbon paper) slitters, cashier paper slitters carbon tape slitters and other series slitting
and re-reeling machines and coater compounding machines at home. They are applied to slitting
re-reeling, coating and compounding paper, film, spinning and non-woven cloth, metal foil etc.
The facsimile paper and cashier paper slitters FQ Series are our newly-developed generation special equipment. It is specifically designed for slitting and re-reeling facsimile paper and cashier paper on the basis of our 20-year production experiences.
The machine integrates electro-mechanic system technologies. It is of reasonable construction
and beautiful outlook. The whole machine adopted a frequency adjustable motor. So its speed can
be adjusted progressively.
The reeling unit is three-roller holding surface central coiling system, with a pneumaticcontroller. It is equipped with a pneumatic paper inserter. So the slitting paper and
the paper pipe are unnecessarily stuck.
The slitter adopts spherical blades. The down spherical blade shaft is a combination of the
bottom blade and blade pad(it is combined according to the slitting width specification).
The position of the upper spherical blade can be adjusted according to the edge position of the down spherical blade. It is unnecessary for the user to take it down. The whole machine adopted
a frequency adjustable motor. So its speed can be adjusted progressively. The maximum slitting
and re-reeling speed is 150m/min. The reeling and unreeling systems adopt digital tension taper
controller and precision drive technology. It adopts digital tension automatic controller.
It can be equipped with an additional color marking device and dual-layer slitting-reeling
system. The parameter setting, running and control can be operated on a man-machine interface.
It features tightreeling, uniformed tightness of the finished product inside and outside,
smooth ends, convenient operation, high slitting speed and large applicable scope. It can meet
the requirements for slitting re-reeling facsimile paper and cashier paper(single layer or
double layer).
The whole machine is designed on the basis of high effective, high precision and high reliability, combining 20-year slitter manufacturing experiences and technologies. Our users can understand they are high quality and low price slitters with higher cost performance ratio.
Technological parameters：
Slitting material | 40-100g/m2 heat-sensitive paper |
Width of equipment | 900mm-1100mm |
Unreeling max diameter | Ф1000mm |
Reeling max diameter | Ф150mm |
Unreelingshaftspecification | Ф76mm expansion shaft |
Reeling shaft specification | Half an inchoneinchsteelshaft（customizable) |
Max slitting speed | 150m/min |
Min slitting width | 28mm |
Reeling end face level degree | ≤±0.2mm |
Total Power | Approximately 2.9kw |
Power supply | Three phase 380v, 50Hz |
Overall dimension (L×W×H) | 1900mm×1800mm×1600mm |
